Multi- Purpose Coloured Cabinets

Great Flexibility – Multiple Uses!

Description

This Series consists of Multi-Purpose Refrigerated Cabinets for long and short term storage, with longevity and heavy-duty construction as main characteristics. The Cabinets are certified for their Energy Class according to the current European Legislation. (This applies to all Cabinets with solid doors)

The Operating Temperature of the Chillers ranges from -2°C to +8°C, while their evaporator is protected against corrosive agents present inside the food-storage area. With the use of the optional accessories, they can be easily transformed to accommodate the storage of Bottled Drinks, Wine, cuts of meat, and numerous other special ingredients! Solid Door Freezers operate guaranteed until -22°C!

There are selected models that operate with the environment friendly, naturally occurring, refrigerant R290 for more than 20% energy savings!

All INOMAK Refrigerators, are offered to a 2-year guarantee on the mechanical parts!



Clear

Product Characteristics

  • High-Quality AISI 304 Stainless Steel!
  • High-Quality Electrostatic Paint!
  • Operating Temperature for all Chillers:  -2oC + 8 oC!
  • Available as Chillers or Freezers in 4 sizes!
  • Available with Stainless Steel or Glass Doors!
  • Constructed with the naturally occurring R290 Refrigerant for substantial energy savings (optional)!
  • 2 LED lights on each Glassdoor!
  • 3ple Glazed Glass on the Doors for minimum Energy Loss on Glass Doors!
  • Anticorrosive Protection of the Evaporators of all Chillers!
  • Dense-wire Shelves as standard!
  • “Anti – Drop” Horizontal Guides (extra)
  • They can be manufactured in the color of your choice!
  • Flexible Interior Design with specialized accessories.
  • 2 years Warranty on all mechanical parts!

Technical Characteristics

Model Dimensions (mm) Capacity (Lt) Doors Shelves Oper. Temperature °C Refrigerant Energy Class Climate Class Compressor
CAP172 720x868x2100 654 1 3 -2 / +8 R290 D 5 Embraco
CAS172 720x868x2100 654 1 3 -2 / +8 R134a F 5 Embraco
CEP2144 1440x868x2100 1432 2 6 -2 / +8 R290 E 5 Embraco
CES2144 1440x868x2100 1432 2 6 -2 / +8 R134a F 5 Embraco
CAPΒ172/SL 720x768x2100 560 1 3 -2 / +8 R290 D 5 Embraco
CASΒ172/SL 720x768x2100 560 1 3 -2 / +8 R134a F 5 Embraco
CEPΒ2144/SL 1440x768x2100 1227 2 6 -2 / +8 R290 E 5 Embraco
CESΒ2144/SL 1440x768x2100 1227 2 6 -2 / +8 R134a F 5 Embraco
CAPΒ172/GL 720x905x2100 654 1 3 -2 / +8 R290 Embraco
CASΒ172/GL 720x905x2100 654 1 3 -2 / +8 R134a Embraco
CEPΒ2144/GL 1440x905x2100 1432 2 6 -2 / +8 R290 Embraco
CESΒ2144/GL 1440x905x2100 1432 2 6 -2 / +8 R134a Embraco

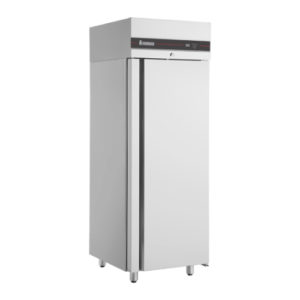

CBPΒ172 720x868x2100 654 1 3 -22 / -10 R290 D 5 Embraco
CBSΒ172 720x868x2100 654 1 3 -20 / 0 R134a F 5 Embraco
CFPΒ2144 1440x868x2100 1432 2 6  -22 / -10 R290 E 4 Embraco
CFSΒ2144 1440x868x2100 1432 2 6 -20 / 0 R134a G 4 Embraco
CBP172/SL 720x768x2100 560 1 3  -22 / -10 R290 D 5 Embraco
CBS172/SL 720x768x2100 560 1 3 -20 / 0 R134a F 5 Embraco
CFP2144/SL 1440x768x2100 1227 2 6  -22 / -10 R290 E 4 Embraco
CFS2144/SL 1440x768x2100 1227 2 6 -20 / 0 R134a G 4 Embraco
CBP172/GL 720x905x2100 654 1 3  -18 / -10 R290 Embraco
CBS172/GL 720x905x2100 654 1 3 -18 / 0 R134a Embraco
CFP2144/GL 1440x905x2100 1432 2 6  -18 / -10 R290 Embraco
CFS2144/GL 1440x905x2100 1432 2 6 -18 / 0 R134a Embraco
