Portable Bain Maries

Ideal for outdoor & mobile kitchen settings & buffets!

Description

Portable Bain Maries by INOMAK offer high-quality performance to the modern Foodservice Professional. These products are ideal both for occasional use or, where food needs to be preserved safely (e.g. roast meat, etc.)

For 2021 there is a new simplified version of the Vitrine available, with straight edges and a lighter design!

Clear
Categories: , SKU: N/A

Features

  • Ergonomically designed double – walled sliding doors, insulated with polyurethane foam.
  • Versatile showcase design with conversion capability depending on the use & 8mm thick glasses.
  • New Vitrine style available with a simplified & “lighter” design with straight edges.

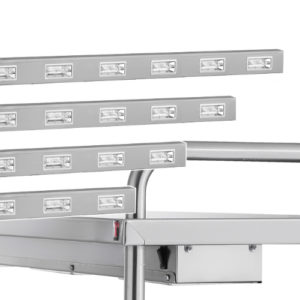

  • Equipped with one halogen lamp per 1/1 Gastronorm pan.
  • Heater protection against low water level in the tank.
  • Wet-well operation.
  • The temperature in the Bain Marie(max.90oC) and in the Heated Cupboard (max.72oC) are controlled by separate Thermostats.

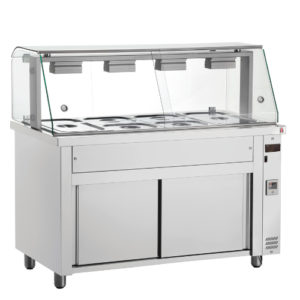

  • They are available in 4 versions: full showcase system, with sneeze guard, top glass and without display case and with a “lighter” vitrine.

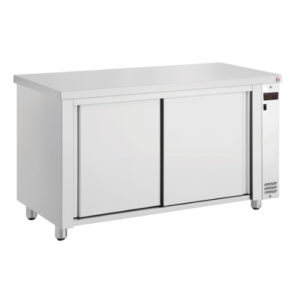

  • Available on neutral or heated cupboard.
  • Maximum GN pan depth allowed: 150m (pans not included)
  • Wheels as an option
  • Material AISI 304 18/8-10
  • Height adjustable stainless-steel legs
  • Fitted with drain tap to allow easy emptying of the water

Model features

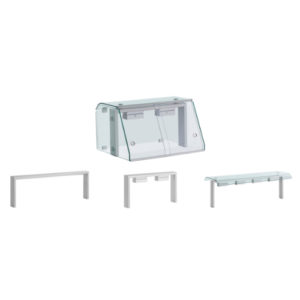

  • Vitrine Variations

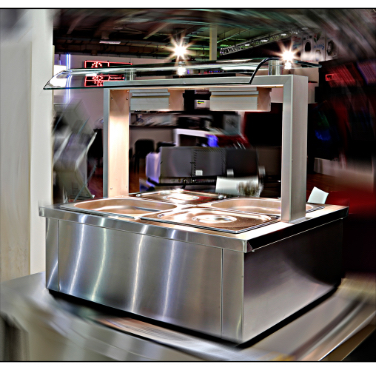

  • Sneeze guard Glass especially designed for INOMAK showcases

Options

  • wheels
  • Without vitrine
  • Single sneeze guard glass
  • Double sneeze guard glass
  • heated cupboard

Specs Table

Basic Model MBV67 MBV610 MBV614
Dimensions mm 760X630x710 1080x630x710 1410x630x710
Weight kg Gross / Net 54 / 45 67 / 58 81 / 70
Gross Volume m3 0,47 0,66 0,85
Vitrine Full Full Full
GN pans capacity 2 3 4
Sneeze Guard
Rated Power W 2263 2393 2523
Rated Current A 9,8 10,4 11,0
