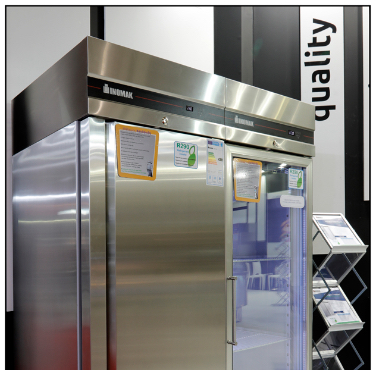

Commercial Refrigerators Chiller Cabinets - Cypress Series

Cypress Series

Chiller Cabinets

Wide Spectrum of Applications!

Consists of general use Chiller Cabinets for Food preservation, with longevity and heavy duty construction as main characteristics. The Cabinets are Energy Efficiency Class certified according to the current European Legislation.

Operating temperatures range from -2°C to +8°C, while their evaporator is protected against corrosive agents present inside the foodstorage area.

In 2019, four new models are added, that work with the environment friendly, naturally occurring, refrigerant R290 for more than 20% energy savings!

Features

Energy Classification according to the European Standards EU 2015/1094 & 2015/1095
AISI 304 18/8-10 stainless steel construction
Available in depth sizings of 868mm & 768mm
Anti-corrosive protection on the evaporators
Injected polyurethane foam insulation, 60mm in thickness
Ergonomically designed interchangeable 70 mm thick doors with lock, equipped with auto-return mechanism at an angle of 45° or less
Hygienically designed rounded corners, clip-on shelving system, clip-on magnetic gaskets easy to clean
Automatic condensates evaporation
Forced air circulation technology
Embedded thermostat for easy operation and cleaning
Two-door cabinets include bridging shelves for increased storage space
R404 refrigerant or the environmental friendly refrigerant R290 for more than 20% energy savings!
Operating temperatures range -2^οC to +8^οC for a wider range of applications!

Specs Table

Model	Dimensions (mm)	Capacity (Lt.)	Doors No	Shelves No	Operating Temperature °C	Refrigerant	Energy Class	Climate Class	Compressor
CAP172	720x868x2100	654	1	3	-2 / +8	R290	D	5	Embraco
CAS172	720x868x2100	654	1	3	-2 / +8	R134a	F	5	Embraco
CAP172/SL	720x768x2100	560	1	3	-2 / +8	R290	D	5	Embraco
CAS172/SL	720x768x2100	560	1	3	-2 / +8	R134a	F	5	Embraco
CEP2144	1440x868x2100	1432	2	6	-2 / +8	R290	E	5	Embraco
CES2144	1440x868x2100	1432	2	6	-2 / +8	R134a	F	5	Embraco
CEP2144/SL	1440x768x2100	1227	2	6	-2 / +8	R290	E	5	Embraco
CES2144/SL	1440x768x2100	1227	2	6	-2 / +8	R134a	F	5	Embraco
