Ramnus Series

Cabinets ready for connection to a Remote Unit

Connect more than one refrigerators to remote refrigerating mechanism and save over time!

Ramnus Series Upright Refrigerators are designed to connect to a remote refrigeration unit either as a single physical unit or in groups of a few refrigerators.

By choosing them you create a low temperature dust-free and/or refrigerant noise-free working environment. The refrigeration unit is adjusted according to the particular conditions of the room.

Ramnus Series Counters offer more storage than the ones with a built-in machine, while their refrigeration system is adjusted according to the particular conditions and needs of the place to be installed.

Clear

Features

  • AISI 304 18/8-10 stainless steel construction
  • 868mm & 768mm depths with stainless steel or glass doors
  • Anti-corrosive protection on the evaporators
  • Injected polyurethane foam insulation, 60mm in thickness
  • For stainless steel door models, interchangeable 70 mm thick doors with lock, equipped with an auto-return mechanism at positions of 90° or less

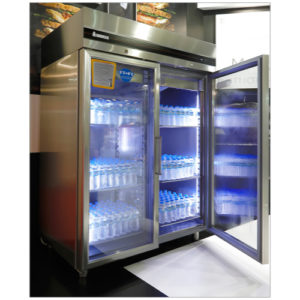

  • Triple glazed Glass Door with an auto-return mechanism at positions of 90° or less and lock for the Glass Door models
  • Hygienically designed rounded corners, clip-on shelving and rack system, clip-on magnetic gaskets easy to clean
  • Forced air circulation technology & automatic evaporation of the condensate water
  • Embedded thermostat easy to operate and clean
  • Two-door Cabinets include bridging shelves for increased storage space

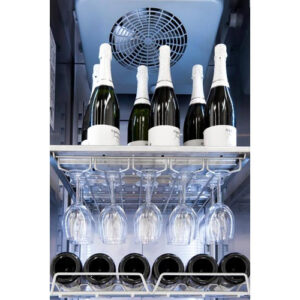

  • On Glass Door Cabinets the shelves are specially designed to safely store most bottle designs in an upright position
  • LED lightning system for the Glass Door models
  • Available with wheels, upon request

Specs Table

Model Dimensions (mm) Capacity (Lt.) Doors No Door Type Shelves No Operating Temperature°C Refrigerant
CAS172/RU 720x868x2100 654 1 Inox 3 -2 / +8 Embraco
CES2144/RU 1440x868x2100 1432 2 Inox 6 -2 / +8 Embraco
CAS172/SL/RU 720x768x2100 560 1 Inox 3 -2 / +8 Embraco
CES2144/SL/RU 1440x768x2100 1227 2 Inox 6 -2 / +8 Embraco
CBS172/RU 720x868x2100 654 1 Inox 3 -21 / 0 Embraco
CFS2144/RU 1440x868x2120 1432 2 Inox 6 -21 / 0 Embraco
CBS172/SL/RU 720x768x2100 560 1 Inox 3 -21 / 0 Embraco
CFS2144/SL/RU 1440x768x2120 1227 2 Inox 6 -21 / 0 Embraco
CAS172/GL/RU 720x905x2100 654 1 Glass 3 -2 / +8 Embraco
CES2144/GL/RU 1440x905x2100 1432 2 Glass 6 -2 / +8 Embraco
CBS172/GL/RU 720x905x2100 654 1 Glass 3 -18 / 0 Embraco
CFS2144/GL/RU 1440x905x2120 1432 2 Glass 6 -18 / 0 Embraco
