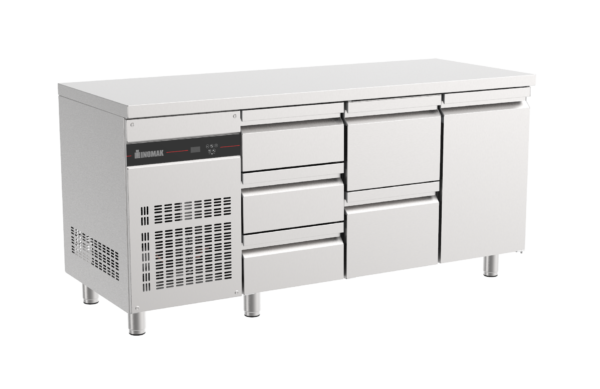

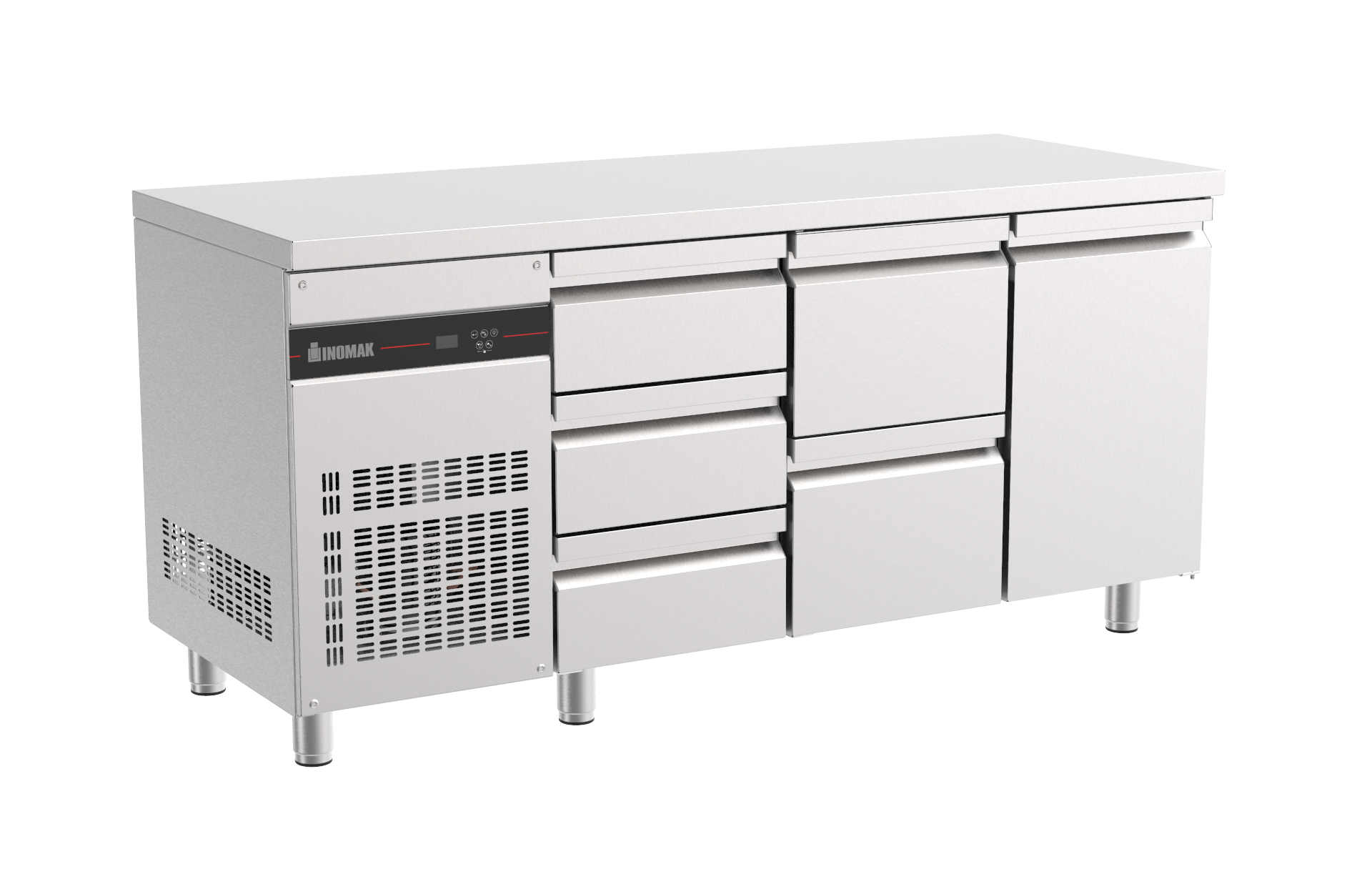

Pine Series

Refrigerated Counters

Robust Construction!

Description

Pine Series consists of general use Refrigerated Counters, in more than 30 different models, for Food Preservation, being mostly characterized for their longevity, heavy-duty construction.

Characteristic features are the protection of the evaporator against corrosive agents present inside the food-storage area and the auto-return mechanism on the doors, for better performance!

Pine Series products are Energy Class certified according to the current European Legislation.



Clear
Categories: , SKU: N/A

Features

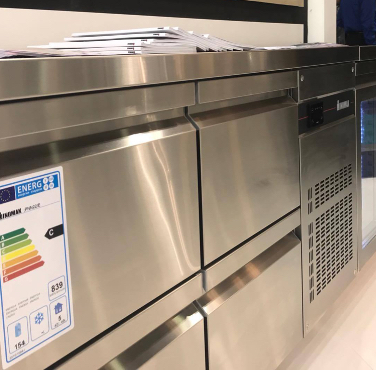

  • Energy Classification under EU directives
  • GN 1/1 Internal dimensions
  • Evaporator’s protection against corrosion
  • 1 shelf per door
  • Forced air circulation technology
  • Hygienically designed interior
  • Clip-On Guides for fast & easy cleaning
  • Automatic evaporation of condensate water
  • Material AISI 304 18/8-10
  • Embedded controller for easy operation and cleaning
  • Injected polyurethane foam insulation
  • self-closing door at 90o
  • Removable magnetic door gasket
  • Automatic defrost
  • Height adjustable stainless-steel legs
  • 3 alternative drawer arrangements available (2xGN ½, 3xGN 1/3, GN2/3 +1/3)
  • Full extension telescopic slides on drawers
  • 2 years Warranty on mechanical parts

Model features

  • New style Condenser with low maintenance requirements (R290 models)
  • Compliant with the use of HC refrigerants (R290 models)
  • Wifi Ready, upon request

Options

  • Wheels
  • Without refrigeration Mechanism
  • With compact dimensions
  • With glass door
  • 2nd evaporator at 4-doors models (upon request)
  • Sink bowl fitting
  • Upstand
  • Without worktop
  • Available with Motor on the Left (New)
  • Choice of Colors (RAL Palette)
  • Variety of Accessories

Specs Table

Base Model PNRP99 PNRP999 PNRP9999
Capacity lt 270 421 571
Dimensions mm 1342x700x873 1792x700x873 2242x700x873
Weight kg Gross / Net 119 / 106 148 / 133 178 / 162
Packaged volume m3 0,95 1,27 1,59
Shelves pcs 2 3 4
Operating Temperature °C 0 / +10 0 / +10 0 / +10
Rated Voltage V/Hz 230 / 50 230 / 50 230 / 50
Electrical power W 344 344 447
Energy class B B B
Climate class 5 5 5
Refrigerant R290 R290 R290
