Commercial Refrigerators - Saladette Counters - Zenobia Series

Description

Zenobia Series consists of Saladette Counters with the refrigerating unit on the right creating, allowing for the installation of other appliances, if necessary.

They stand out for the protection of the evaporator against corrosive agents present inside the food-storage area and for their versatile showcase.

The products of the Zenobia Series are available with the versatile showcase of INOMAK Refrigerators and their variants, as well as, without it!

Features

With natural refrigerant R290 (Zero ODP/GWP=3)
Embedded controller for easy operation and cleaning
1 shelf per door
Hygienically designed interior
Material AISI 304 18/8-10
Evaporator’s protection against corrosion
Forced air circulation technology
Clip-On Guides for fast & easy cleaning
Maximum GN pan depth allowed: 150m (pans not included)
Removable magnetic door gasket
2 years Warranty on mechanical and electrical parts
GN 1/1 Internal dimensions
Automatic evaporation of condensate water
Injected polyurethane foam insulation
Automatic defrost
Tempered Glass Vitrines
Available with 2 types of Vitrines, without Vitrine and as Preparation Station.
Available in 4 Different Model Types:
1) Stainless Steel Worktop (Prep. Station)

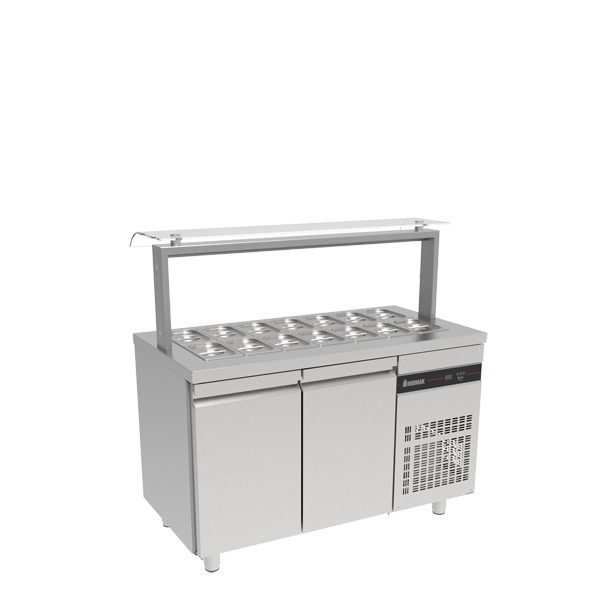

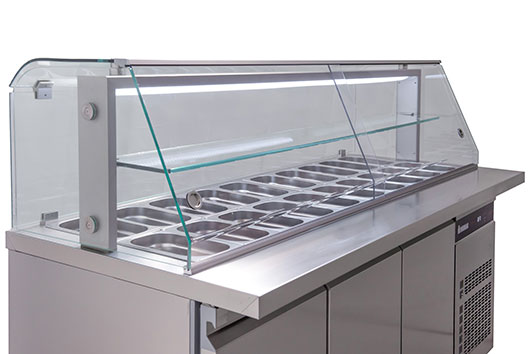

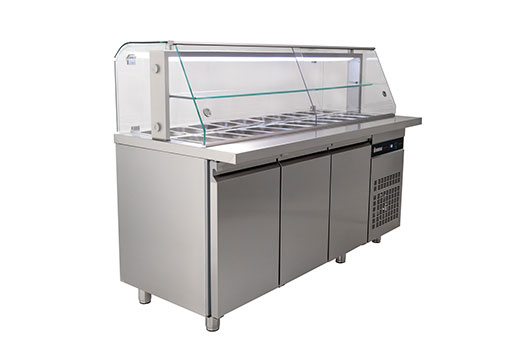

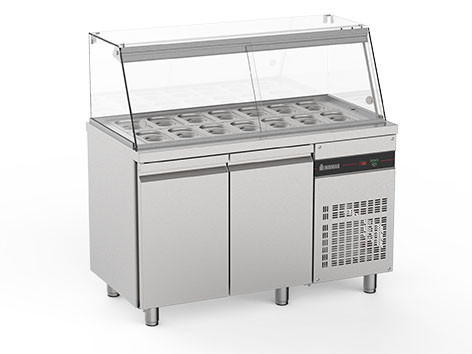

2) Two Types of Full Vitrines (Flexible Vitrine System & Squared Type Vitrine)

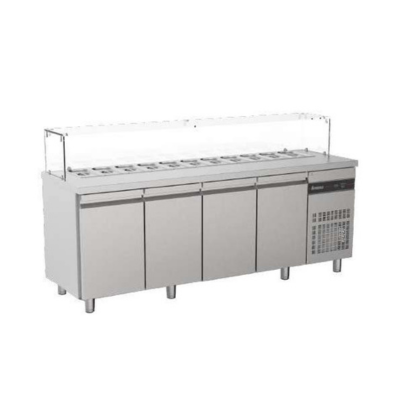

3) Front Open Squared Type Vitrine

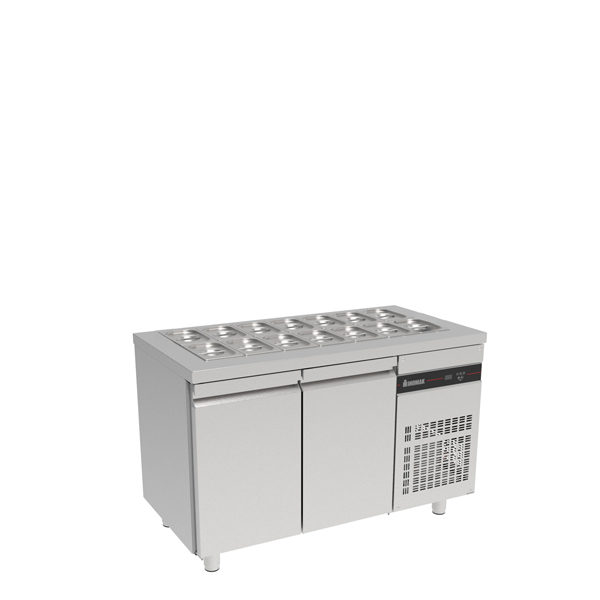

4) Without Vitrines
Ambient temperature +32oC
Height adjustable stainless-steel legs
self-closing door at 90o

Special Features

Material AISI 304 18/8-10
Safety: All Vitrines are secured

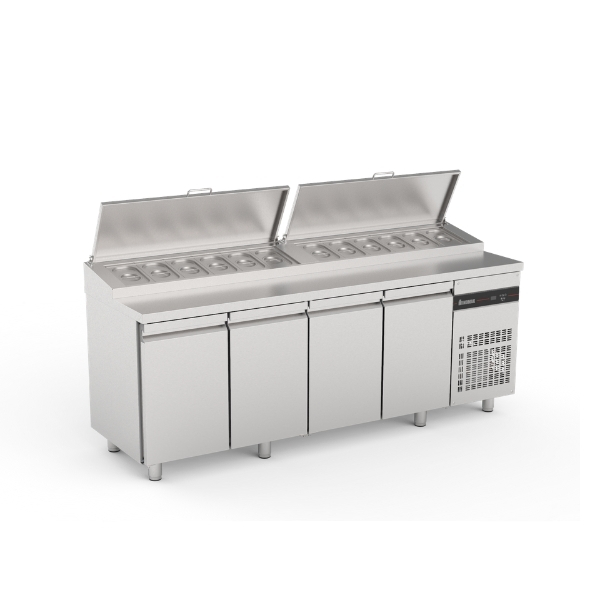

4 Door Models, include 2 evaporators for even better performance! (ZPZP9999, ZPFP9999, ZGFP9999)
New style Condenser with low maintenance requirements

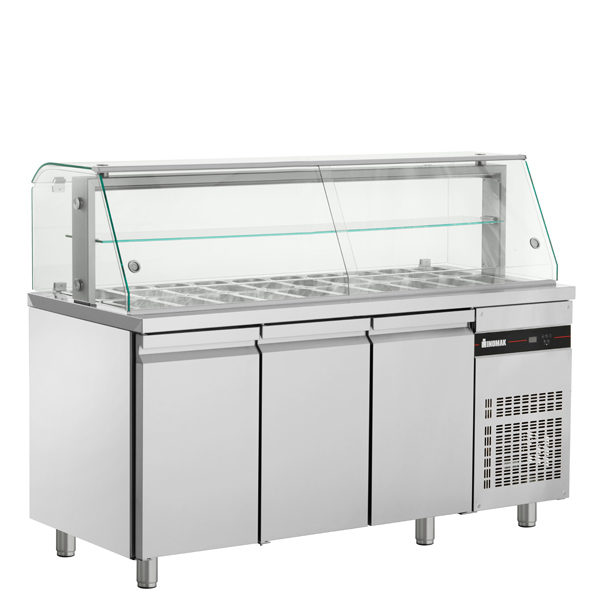

Flexible Vitrine System (only ZQFP)
Sealed Squared Type Vitrine System (ZSQP Models)
Without Vitrine (ZNFP + ZGFP Models)

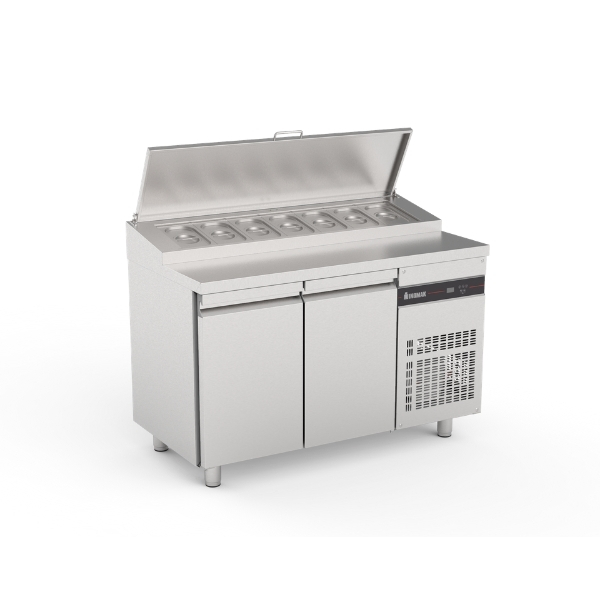

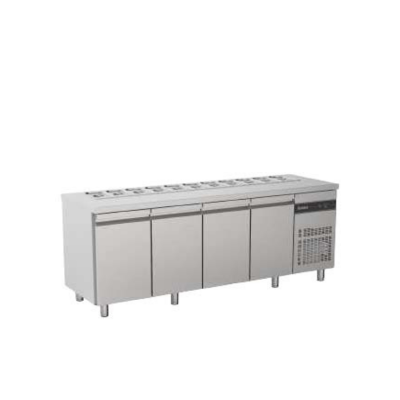

Prep Stations with Stainless Steel Top for GN 1/4 Pans with maximum depth 150mm, available in three different sizes (ZPZP Models)
Prep Stations with Stainless Steel Top for GN 1/3 Pans with maximum depth 150mm, available in three different sizes (ZPFP Models)

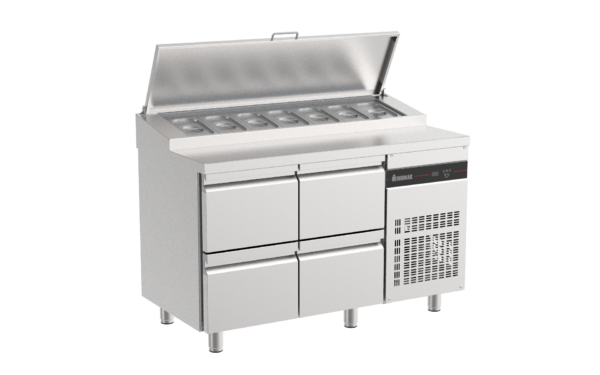

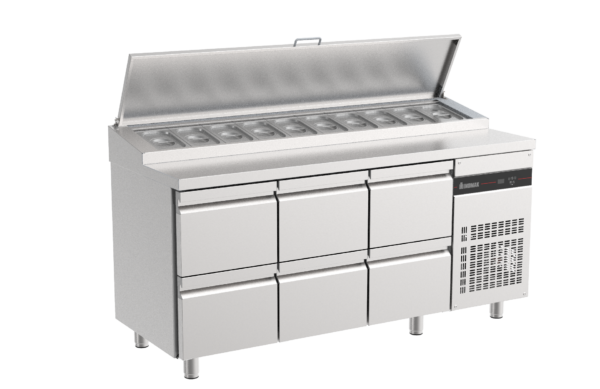

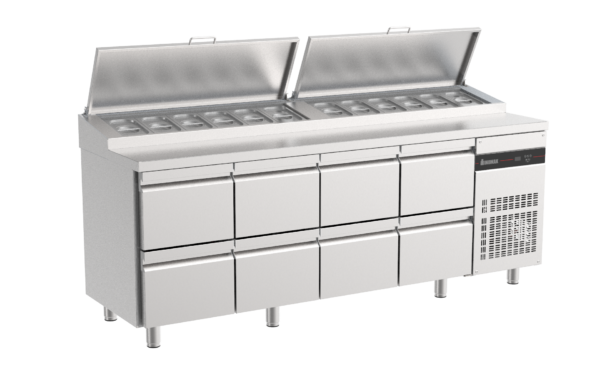

Drawer Slides (only for ZPZP 1/2 GN) NEW
Drawer Slides with soft close (only for ZPZP 1/2 GN) NEW
In models ZQFP, ZNFP, ZSQP you may add max… 1/4 pans, max 1/…

Options

Wheels
Wifi NEW
Choice of Colors (RAL Palette)
with Motor on the Left
without Refrigeration Mechanism, but NOT Compact Dimentions
with an Upstand (Models ZNFP-ZGFP)

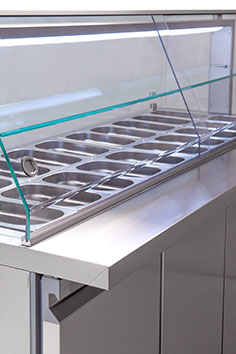

with Worktop 80 cm deep
Drawer Slides with soft close (Only for ZPZP 1/2 GN) NEW

Specs Table 1

Base Model		ZQFP99	ZQFP999	ZPZP99	ZPZP999	ZPZP9999
Capacity	lt	270	421	270	421	571
Dimensions	mm	1342x700x1313	1792x700x1313	1342x700x1019	1792x700x1019	2242x700x985
Weight	kg Gross / Net	154 / 137	186 / 168	126 / 113	154 / 139	191 / 175
Packaged volume	m3	1,45	1,92	–	–	–
Shelves	pcs	2	3	2	3	4
Operating Temperature	°C	+3 / +10	+3 / +10	0 / +10	0 / +10	0 / +10
Rated Voltage	V/Hz	230 / 50	230 / 50	230 / 50	230 / 50	230 / 50
Electrical power	W	476	485	449	449	465
Energy class		–	–	–	–	–
Climate class		4	4	4	4	4
Refrigerant		R290	R290	R290	R290	R290

Specs Table 2

Base Model		ZPFP99	ZPFP999	ZPFP9999	ZGFP99	ZGFP999	ZGFP9999
Doors		2	3	4	2	3	4
Bin Capacity		6 GN 1/3	9 GN 1/3	11 GN 1/3	6 GN 1/3	9 GN 1/3	11 GN 1/3
Space for Preparation	cm	32,2	32,2	32,2	32,2	32,2	32,2
Capacity	lt	270	421	571	270	421	571
Dimensions	mm	1342x700x873	1792x700x873	2242x700x873	1342x700x873	1792x700x873	2242x700x873
Weight	kg Gross / Net	119 / 106	148 / 133	185 /169
Packaged Volume	m3	0,95	1,27	1,59
Shelves	pcs	2	3	4	2	3	4
Operating Temperature	°C	+3 / +10	+3 / +10	+3 / +10	+3 / +10	+3 / +10	+3 / +10
Rated Temperature	V/Hz	230 / 50	230 / 50	230 / 50	230 / 50	230 / 50	230 / 50
Electrical Power	W	433	433	465	433	433	465
Refrigerant		R290	R290	R290	R290	R290	R290
