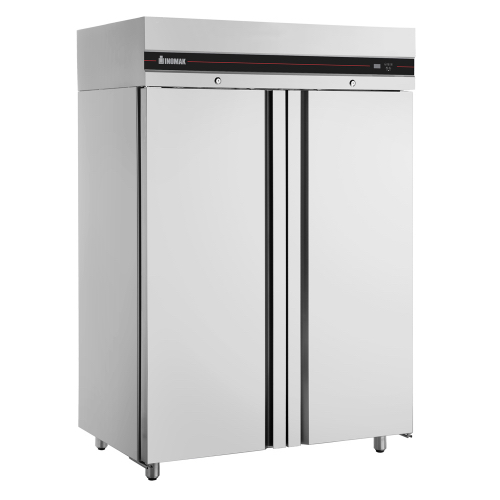

Clover Series

Chiller or Freezer Cabinets with Compact Dimensions.

Enhance the ergonomics of settings with limited space or store limited amounts of raw material safely & efficiently!

Description

Clover Cabinets with their compact dimensions, are ideal for limited spaces and for safely storing products with small volumes.

There 8 different models available, with conventional refrigerant, as well as the natural occurring R-290 for dramatic decrease of energy consumption as well as other performance benefits.

Clear
Categories: , SKU: N/A Tag:

Features

  • Energy Classification under EU directives
  • Door thickness 70 mm
  • Chiller & Freezer Models Available
  • Compact Dimensions for Smaller Spaces
  • 3 shelves per door
  • Forced air circulation technology
  • One Lock per door as standard
  • Hygienically designed interior
  • Clip-On Guides for fast & easy cleaning
  • Automatic evaporation of condensate water
  • Material AISI 304 18/8-10
  • Embedded controller for easy operation and cleaning
  • Injected polyurethane foam insulation
  • self-closing door at 90o
  • Removable magnetic door gasket
  • Automatic defrost
  • Height adjustable stainless-steel legs
  • 2 years Warranty on mechanical parts.

Model features

  • New style Condenser with low maintenance requirements (R290 models)
  • Compliant with the use of HC refrigerants (R290 models)
  • Evaporator protection against corrosion (only for Chillers)
  • Reversible doors (Models with 1 door)
  • Bridging Shelves (Models with 2 doors)

Options

  • Wheels
  • Without refrigeration Mechanism
  • Glass door (New)
  • Choice of Colors (RAL Palette) (New)
  • Variety of Accessories & Transformation Kits

Specs Table

Base Model CAP172/SL CBP172/SL CEP2144/SL CFP2144/SL
Capacity lt 560 560 1227 1227
Dimensions mm 720x768x2100 720x768x2100 1440x768x2100 1440x768x2100
Weight kg Gross / Net 137 / 120 144 / 126 215 / 191 221 / 197
Packaged volume m3 134 134 260 260
Shelves pcs 3 3 6 6
Operating Temperature °C -2 / +8 -22 / -10 -2 / +8 -22 / -10
Rated Voltage V/Hz 230 / 50 230 / 50 230 / 50 230 / 50
Electrical power W 458 580 745 763
Energy class D D E D
Climate class 5 5 5 4
Refrigerant R290 R290 R290 R290
