Freezer Counters

Oak Series

Description

Oak Series consists of Freezer Counters for multi purpose and specialized use, for food preservation. Oak series technology can promise longevity through their robust construction & performance.

They are also available in Compact Dimensions /Slim Clover (60cm Depth) Counters



Clear
Categories: , SKU: N/A

Features

  • Clip-On Guides for fast & easy cleaning
  • Forced air circulation technology
  • 3 alternative drawer arrangements available (2×GN 1/2, 3×GN 1/3, GN 1/3 + 2/3)
  • Hot gas defrost
  • Material AISI 304 18/8-10
  • Self-closing door at 90 o
  • Hygienically designed interior
  • Automatic evaporation of condensate water
  • Injected polyurethane foam insulation
  • Removable magnetic door gasket
  • 2 years Warranty on mechanical and electrical parts
  • Height adjustable stainless-steel legs
  • GN 1/1 Internal dimensions
  • 1 shelf per door

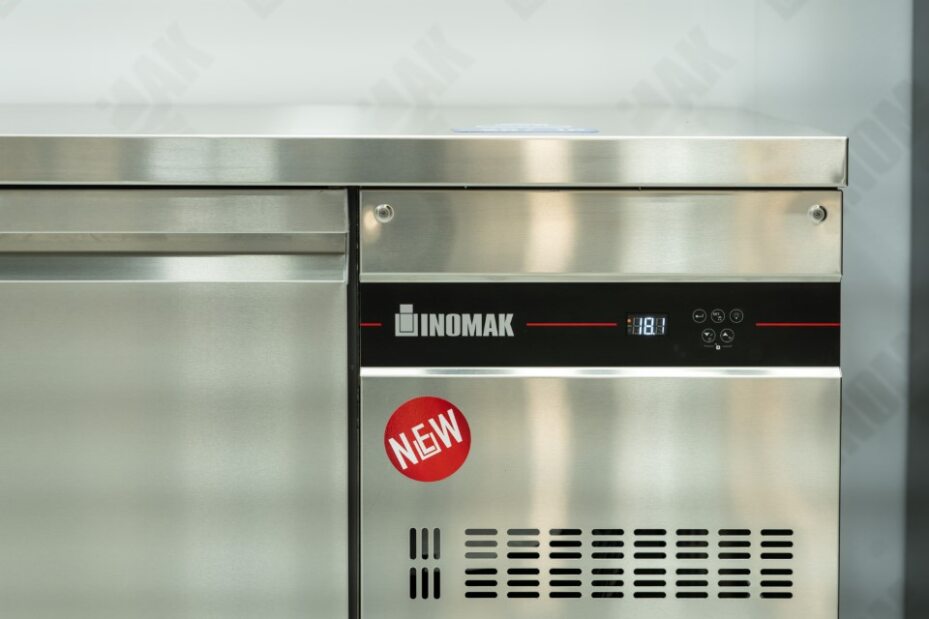

  • Embedded controller for easy operation and cleaning
  • Evaporator protection against corrosion
  • Energy Classification under EU directives
  • Over extension telescopic slides on drawers
  • Ambient temperature +43 C o

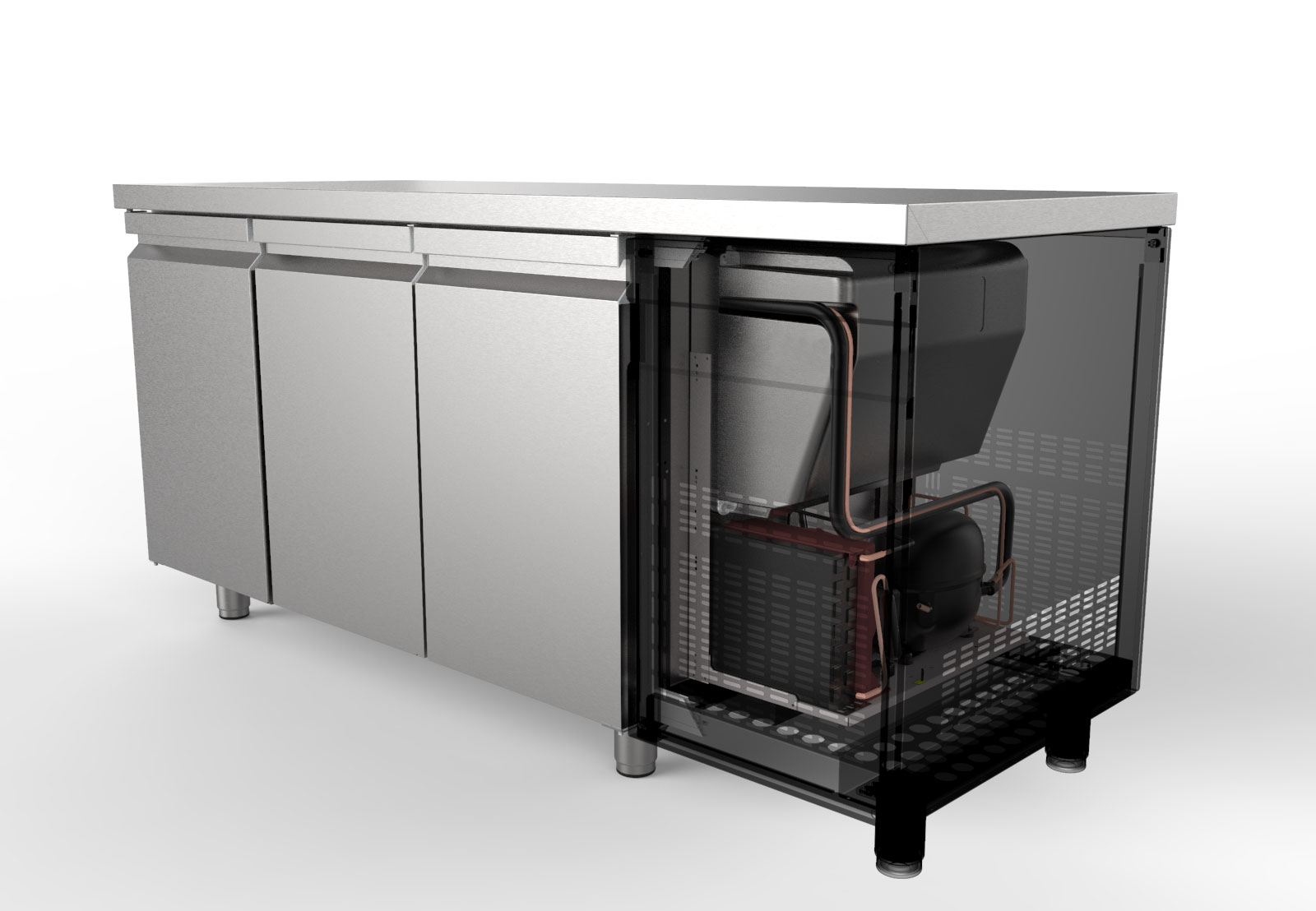

  • Monoblock Technology
  • With natural refrigerant R290 (Zero ODP/GWP=3)

Options

  • Wheels
  • Wifi NEW
  • Choice of Colors (RAL Palette)
  • without Refrigeration Mechanism (Ramnus Series – Remote Unit)
  • with Compact dimensions 60cm (Clover Series)
  • with Refrigeration Mechanism on the left side
  • with an Upstand
  • without Worktop
  • with Worktop 80cm deep
  • Drawer Slides with soft close NEW

Specs Table

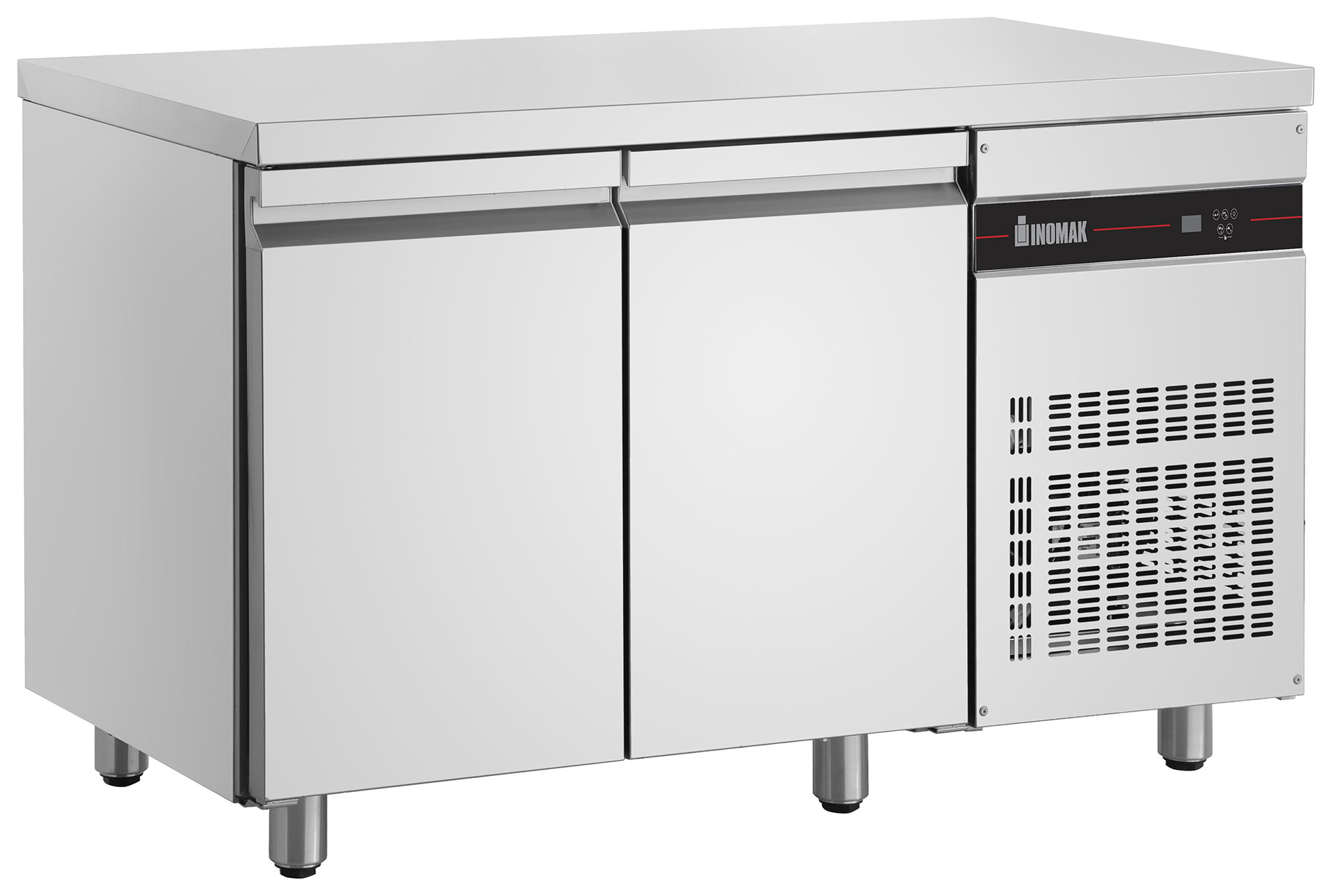

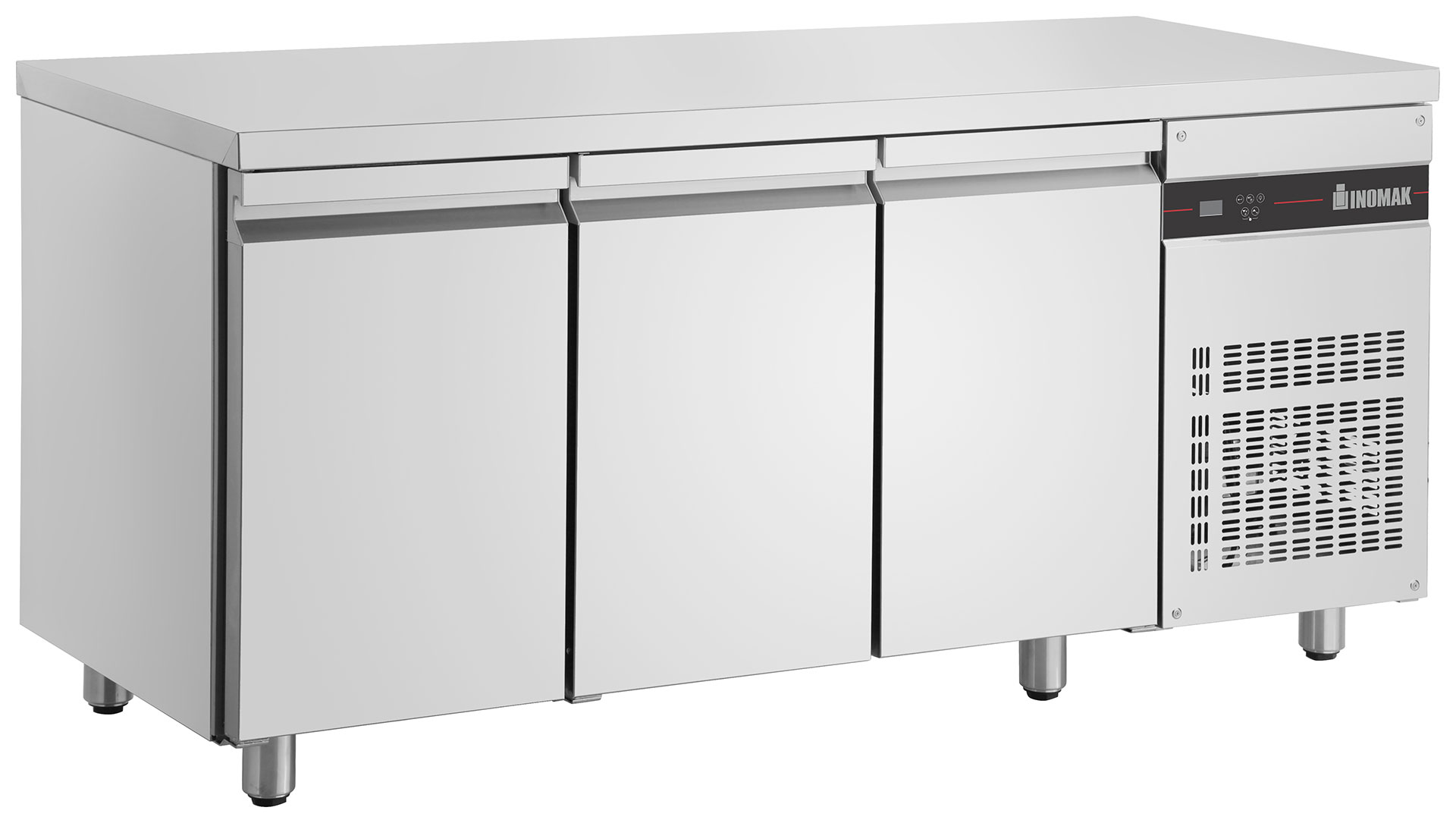

Model PNEG99 PNEG999
Doors 2 3
Capacity (lt) 270 421
Dimensions (mm) 1342 × 700 × 873 1792 × 700 × 873
Gross / Net (kg) 124 / 111 153 / 138
Packaged Volume (m) 0,95 1,27
Shelves (pcs – in total) 2 3
Operating Temperature (°C) -20 / -10 -20 / -10
Rated Voltage (V/Hz) 230 / 50 230 / 50
Electrical Power (W) 337 347
Energy Class C AMONG THE TOP C AMONG THE TOP
Climate Class 4 4
Refrigerant R290 R290
